Diagnosing and Replacing Flame Sensor Training





Content Type icon

CONTENT TYPE

VR, ILV, Interactive Modules

Duration icon

DURATION

3 Hours

Target Audience icon

TARGET AUDIENCE

Technician

Course Delivery icon

COURSE DELIVERY

VR or WEB Based

Credits icon

Credits : 0.4

Four icons symbolizing a training journey from learning to execution



About the Course:

This Diagnosing and Replacing Flame Sensor microcredential trains HVAC technicians to safely diagnose, remove, and replace flame sensors in gas-fired furnaces. Learners gain hands-on practice identifying flame sensor faults through electrical testing and operational symptoms, then follow correct removal and installation procedures. The course emphasizes safety, accuracy, and verification to ensure reliable furnace ignition and operation, including how to replace a flame sensor and how to replace flame sensor components correctly.

Learning Objectives:

  • Identify common symptoms of a faulty flame sensor (ignition failure, short cycling, furnace lockout).

  • Use a multimeter to test flame sensor voltage and confirm failure.
  • Follow proper safety procedures, including powering down the furnace and shutting off the gas supply.
  • Safely remove a faulty flame sensor using correct tools and techniques.
  • Install a new flame sensor, reconnect wiring, and secure mounting hardware.
  • Restore power and gas and verify proper furnace operation after replacement.

This Diagnosing and Replacing Flame Sensor training is delivered through our LMS and is available as both web-based and immersive VR training.

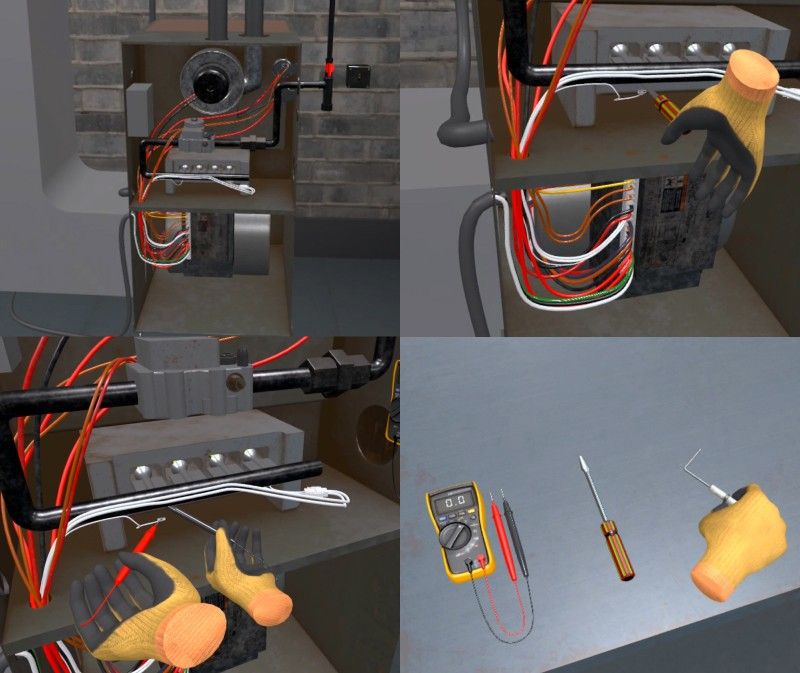

HVAC technician diagnosing flame sensor in a gas furnace for safe operation



Diagnosing and Replacing Flame Sensor Training for HVAC Technicians

Electrical testing of furnace flame sensor with multimeter by trained HVAC technician

At ImmerseLearn, we prepare HVAC technicians for real-world furnace diagnostics and repair tasks. This microcredential focuses on safe troubleshooting, electrical testing accuracy, and precise component replacement skills critical for maintaining efficient and reliable heating systems.

How this course strengthens workforce skills:

Flame Sensor Diagnostics −
Learn how to diagnose flame sensor issues using visual inspection and multimeter voltage readings. Technicians practice identifying improper sensor signals that prevent furnaces from maintaining a stable flame, helping reduce unnecessary component replacements and service callbacks.
Safe Shutdown and Removal Procedures +
Practice proper system shutdown by turning off furnace power and isolating the gas supply. Learners safely remove the flame sensor using standard hand tools while protecting surrounding components and wiring.
Cause Identification +
Identify root causes of flame sensor failure, including contamination, wear, improper grounding, or electrical faults. Understanding these causes helps technicians prevent repeat failures and improve long-term system performance.
Replacement and Verification +
Select and install the correct flame sensor, secure it properly, and reconnect wiring. Restore power and gas, then verify ignition and furnace operation to confirm a successful repair and safe system performance.

By completing this microcredential, HVAC technicians will build the confidence and technical skills needed to diagnose, replace, and verify flame sensors safely and effectively, ensuring consistent furnace ignition, improved reliability, and customer satisfaction through hands-on how to replace a flame sensor practice.
