Replacing Motor Coupling in a Oil Furnace



Content Type icon

CONTENT TYPE

VR, ILV, Interactive Modules

Duration icon

DURATION

3.5 Hours

Target Audience icon

TARGET AUDIENCE

Technician

Course Delivery icon

COURSE DELIVERY

VR and Web-based

Credits icon

Credits : 0.4

Icons representing a four-step workflow: Learn, Assess, Evaluate, and Implement”

About the Course:

This Replacing Motor Coupling in a Oil Furnace microcredential trains HVAC technicians to safely diagnose, remove, and replace worn or broken motor couplings in oil-fired heating systems. Learners will perform hands-on diagnostic procedures, including system shutdown, component inspection, and alignment checks. The course emphasizes proper installation techniques and operational verification to ensure efficient burner performance and reliable heat generation.

To build these skills further, explore our HVAC Technician Training Program and advance toward real-world service readiness.

Learning Objectives:

  • Identify symptoms of motor coupling failure, such as burner motor running without oil pump operation or unusual noise/vibration
  • Safely shut down and isolate power to the oil furnace before servicing
  • Inspect motor coupling components for wear, cracks, or misalignment
  • Confirm coupling failure through visual inspection and system behavior
  • Remove damaged motor couplings using appropriate tools and safety practices
  • Install and align new motor coupling components correctly
  • Reassemble system components and restore power safely
  • Verify proper burner motor and oil pump operation after replacement



Course delivered via LMS and requires an Oculus VR headset for hands-on VR simulations.

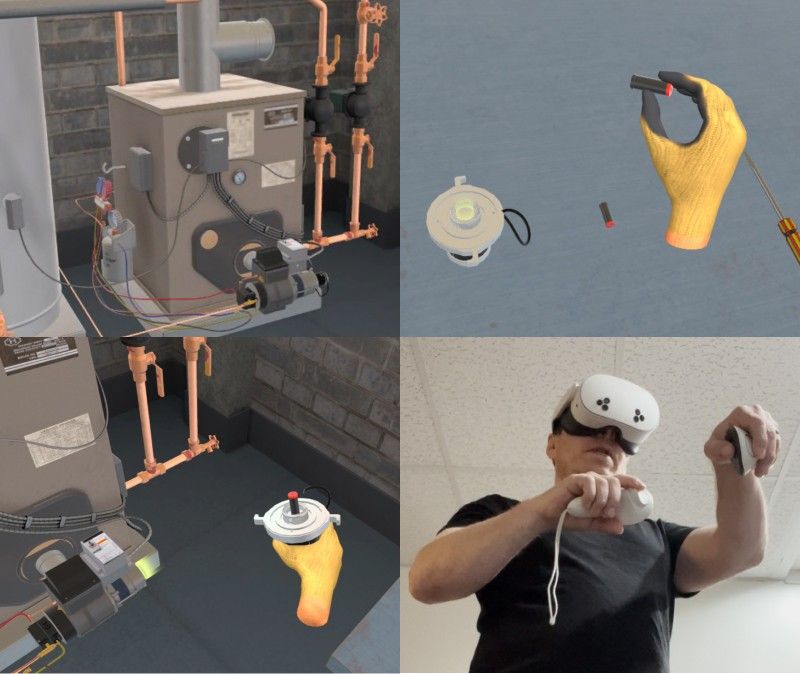

HVAC technician replacing motor coupling in oil furnace during maintenance and repair training



Workforce Development

Technician performing oil furnace motor coupling repair during hands-on HVAC training

At ImmerseLearn, we equip HVAC technicians with hands-on, job-ready skills for servicing oil heating systems. This microcredential strengthens mechanical troubleshooting, system safety practices, and precision in component replacement through immersive VR-based learning.

How this course strengthens workforce skills:

Motor Coupling Diagnostics −
Learn how to diagnose motor coupling issues by recognizing key indicators such as motor operation without pump engagement, slipping connections, or abnormal vibrations. This skill helps technicians quickly pinpoint mechanical failures and avoid unnecessary component replacements.
Safe Shutdown and Inspection Procedures +
Practice essential safety steps, including powering down the furnace, isolating electrical supply, and accessing burner assembly components. Emphasis is placed on safe disassembly and inspection techniques to prevent injury and equipment damage.
Cause Identification +
Determine common causes of motor coupling failure such as wear and tear, improper alignment, excessive load, or aging materials. Learners will interpret physical signs and system behavior to accurately diagnose the root cause.
Replacement and Verification +
Select and install a compatible motor coupling, ensure proper alignment between the motor and oil pump shafts, and secure all components correctly. Learners will complete the process by verifying smooth system operation, proper oil flow, and consistent burner performance.

By completing this microcredential, HVAC technicians will gain the confidence and technical expertise needed to replace motor couplings efficiently, minimize system downtime, and maintain reliable oil furnace operation in real-world service environments.

Want to advance further? Explore our complete guide to becoming a certified HVAC technician.
