Changing a Shower Cartridge: Step-by-Step Plumbing Repair Guide

Introduction:

In residential and commercial plumbing, we often see leaking or malfunctioning shower valves as one of the most frequent service calls. In many cases, the issue traces back to a worn or damaged shower cartridge. That’s why Changing a Shower Cartridge correctly is a core repair skill every Plumbing Technician must master.

We know that this repair demands careful disassembly, correct tool usage, proper component handling, and precise reassembly. If we perform these steps incorrectly, it can lead to leaks, temperature control issues, or even damage to internal valve components hidden inside the wall.

We teach shower cartridge replacement through immersive Virtual Reality training, where we practice every step in a realistic simulated bathroom environment. This hands-on, simulation-based approach helps us build confidence, improve procedural accuracy, and prepare for real-world plumbing repairs in homes and commercial facilities.

What Is a Shower Cartridge and Its Function

A shower cartridge is an internal valve component that we rely on to control water flow and temperature in a shower system. It regulates how hot and cold water mix and determines how much water passes through the valve when we turn the handle, which makes it essential to understand when we are changing a Shower Cartridge as part of professional plumbing repair.

When a cartridge wears out or becomes damaged, we may notice:

1. Dripping shower heads
2. Difficulty controlling temperature
3. Reduced water flow
4. Stiff or loose handles


By replacing the cartridge, we restore proper valve function and improve temperature control and water flow. In many cases, shower cartridge replacement is more efficient and cost effective than replacing the entire valve assembly, making it a critical skill for plumbing technicians in skilled trades.

Why Proper Shower Cartridge Replacement Technique Matters

Shower valve assemblies include multiple small components that we must remove and reinstall in the correct order during Changing a Shower Cartridge. As Plumbing Technicians, we need to work carefully to avoid stripping screws, damaging retaining clips, or misaligning internal valve parts that affect overall shower valve repair and system performance.

Key Benefits of Correct Replacement Technique:

1. Leak free operation
2. Smooth handle control
3. Accurate temperature adjustment
4. Protection of internal valve parts


Since many valve components look similar, we rely on step by step procedural training to perform shower cartridge replacement accurately. This structured approach helps Plumbing Technician students build precision, improve tool handling, and confidently execute professional plumbing repair procedures.

Read more: Our comprehensive Plumbing Training Guide for Skilled Trades

VR-Based Training for Changing a Shower Cartridge

We use Virtual Reality in the Plumbing Technician program to simulate realistic plumbing repair scenarios that mirror actual field service conditions. Through this immersive training, we guide learners step by step while they practice Changing a Shower Cartridge using accurate tools and detailed virtual shower valve assemblies that replicate real plumbing systems.

Skills Practiced in the VR Environment:

• Using hand tools correctly with proper grip and controlled movement to protect valve components

• Removing trim and control components in the correct sequence to access internal valve parts safely

• Extracting and installing cartridges with correct alignment and steady force

• Securing retaining clips carefully to lock the cartridge in place without damaging small parts

• Reassembling valve controls accurately to restore smooth handle operation and temperature control


This immersive training approach allows us to repeat shower cartridge replacement procedures multiple times without the risk of damaging real fixtures, helping Plumbing Technician learners build confidence, technical precision, and job-ready plumbing repair skills.

Step-by-Step Changing a Shower Cartridge in VR Training

1) Loosening the Handle Screw:

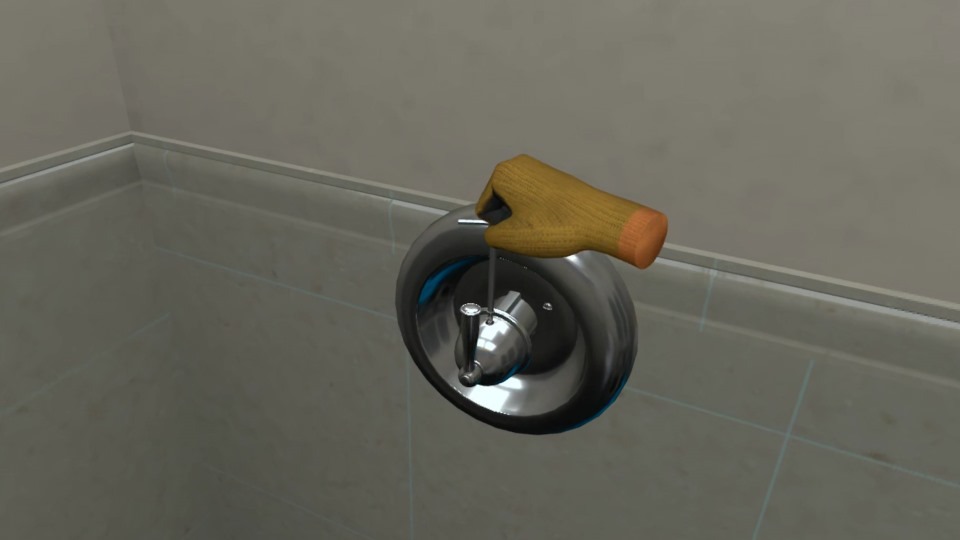

We begin the process of Changing a Shower Cartridge by picking up the Allen wrench and placing it on the highlighted set screw location. We rotate the wrench carefully to loosen the screw that secures the handle assembly. Once the screw is loosened, we place the Allen wrench back on the table. This step reinforces correct tool selection and controlled screw removal during shower cartridge replacement.

2) Removing the Handle Adapter:

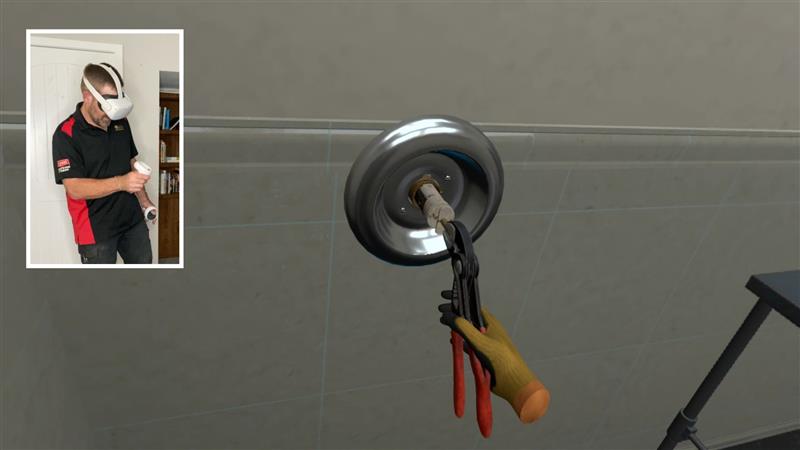

Next, we grab the handle adapter and remove it from the valve stem. Removing this component exposes the internal trim parts and mounting screws required for further disassembly. This step helps us practice proper part handling and correct orientation awareness during plumbing repair procedures.

3) Removing the Mounting Screw:

We then pick up a screwdriver and position it on the highlighted mounting screw. By applying steady pressure, we loosen and remove the screw completely before attempting to detach any components. This reinforces patience, precision, and proper screw removal technique in shower valve cartridge replacement.

4) Removing Key Stop and Temperature Limit Stop:

After removing the screw, we carefully take out the key stop and place it on the table. Next, we remove the adjustable temperature limit stop and set it aside in sequence. These components control rotation limits and temperature range, so we emphasize removing them in the correct order during the shower valve repair process.

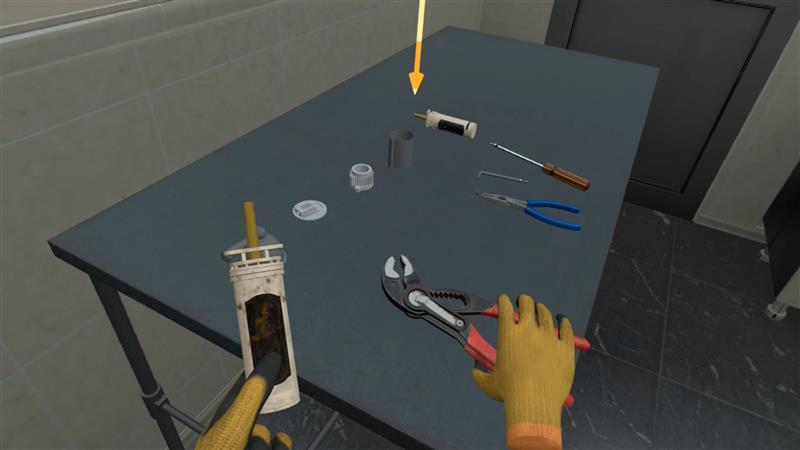

5) Removing the Stop Tube:

We then grab the stop tube, remove it from the assembly, and place it on the table. With the stop tube removed, the cartridge retaining hardware becomes fully accessible. This step strengthens our understanding of layered valve trim assemblies involved in Changing a Shower Cartridge.

6) Removing the Cartridge Retaining Clip:

Finally, we pick up needle nose pliers and use them to remove the cartridge retaining clip that locks the cartridge inside the valve body. After removing the clip, we place the pliers back on the table. This step emphasizes careful clip removal to prevent bending, misplacement, or damage to small internal valve components.

Removing the Old Shower Cartridge

1) Extracting the Cartridge:

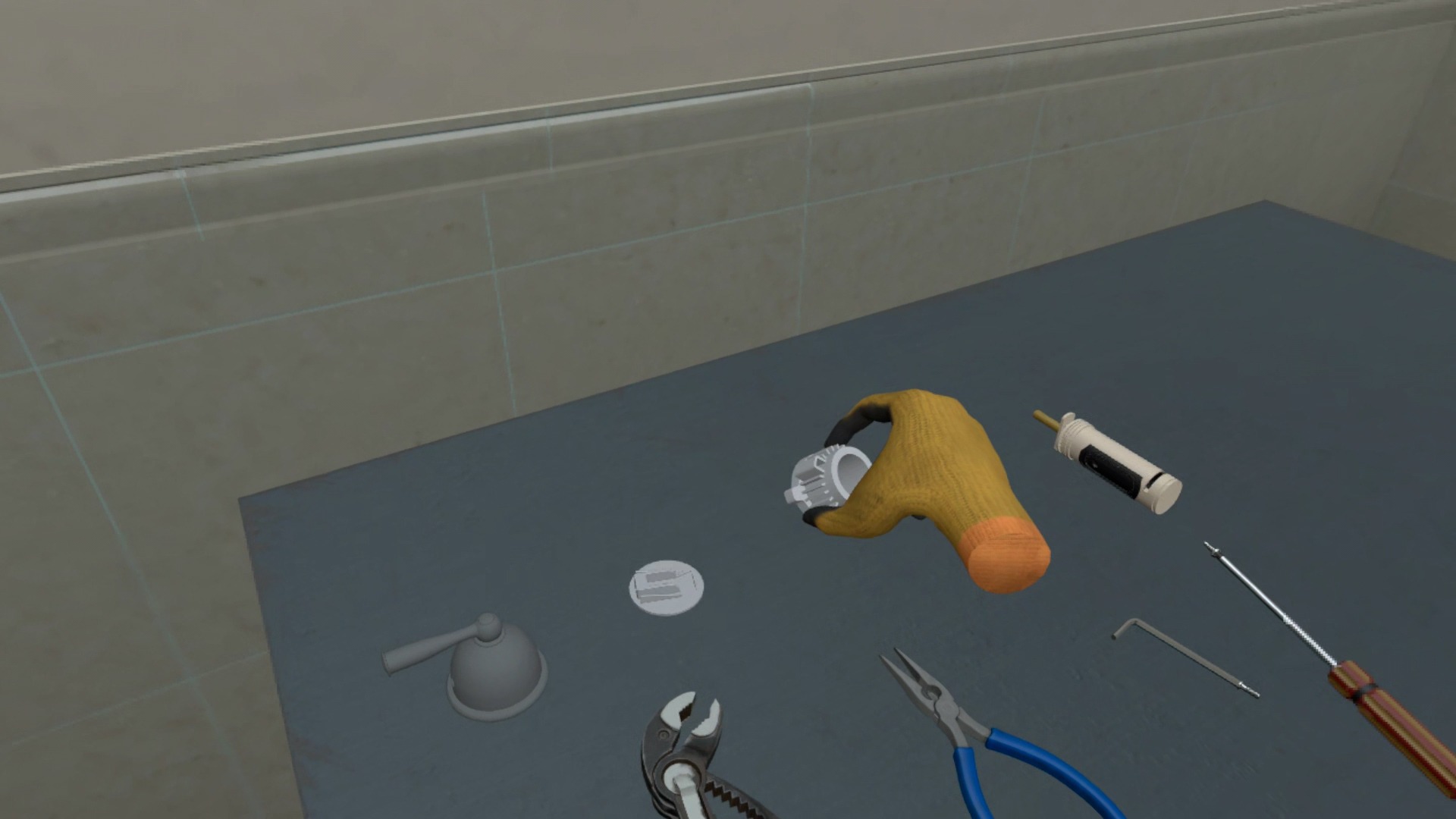

We begin Changing a Shower Cartridge by picking up a wrench and positioning it on the highlighted cartridge grip area. Using controlled and steady movement, we carefully pull the old shower cartridge out of the valve body. This step helps us learn proper grip technique and apply the correct extraction force during shower cartridge replacement.

2) Preparing the New Cartridge:

After removing the old cartridge from the wrench, we pick up the new shower cartridge and attach it securely to the wrench, preparing it for installation. During this stage, we focus on component inspection and correct orientation to ensure accurate placement within the valve assembly.

3) Installing the New Cartridge:

Using the wrench, we place the new cartridge into position and push it fully into the valve body until it is properly seated. Correct seating is critical to maintain proper alignment, sealing, and temperature control. Once installation is complete, we return the wrench to the table, reinforcing proper tool handling during the shower valve cartridge replacement process.

Securing and Reassembling the Shower Valve

1) Reinstalling the Retaining Clip:

We continue Changing a Shower Cartridge by picking up the needle nose pliers with the retaining clip and placing it into the highlighted slot to lock the cartridge securely in place. Once the clip is properly seated, we set the pliers aside. This step is critical because the retaining clip prevents cartridge movement during normal shower valve operation.

2) Reinstalling Stop Tube and Limit Components:

Next, we place the stop tube back into position. We then install the adjustable temperature limit stop, followed by the key stop in the correct sequence. This process restores proper temperature control and rotation limits within the shower valve assembly.

3) Tightening the Mounting Screw:

We pick up the screwdriver and tighten the mounting screw until it is fully secure. Proper tightening ensures trim stability while avoiding over tightening that could damage valve components.

4) Reinstalling the Handle Adapter:

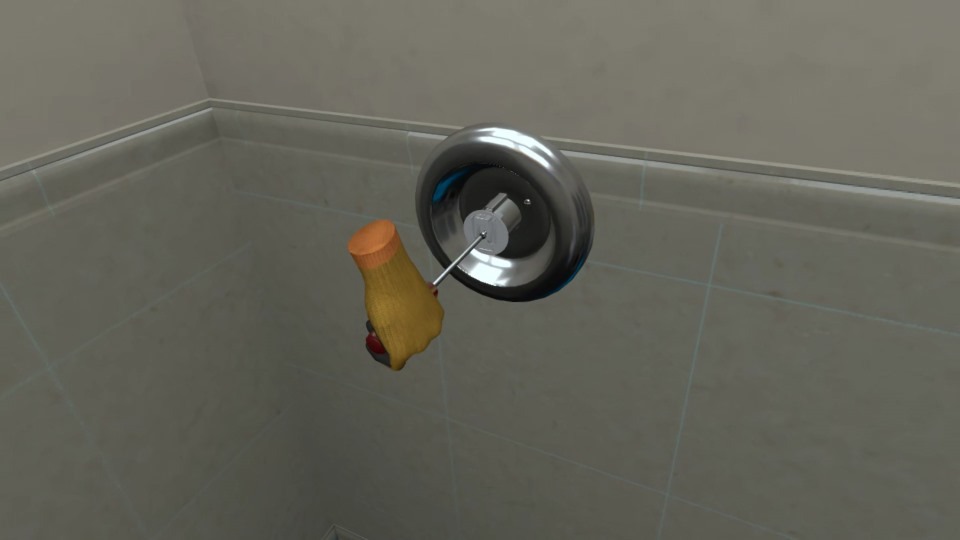

We place the handle adapter back onto the valve stem in the correct orientation, ensuring proper alignment for smooth handle operation and final assembly.

5) Securing the Handle with the Allen Wrench:

Finally, we pick up the Allen wrench, position it on the set screw, and rotate it to tighten the handle securely. Once tightened, we return the wrench to the table. This final step completes the shower valve reassembly involved in Changing a Shower Cartridge.

From Virtual Practice to Real-World Plumbing Repairs

After mastering Changing a Shower Cartridge in a Virtual Reality training environment, we apply these shower cartridge replacement skills in real world plumbing repair and externship based settings. Because we have already completed the full step by step procedure in simulation, we approach actual shower valve repairs with greater confidence, accuracy, and efficiency.

This hands-on transition from virtual practice to field application helps reduce installation errors, improves service quality, and strengthens job ready Plumbing Technician skills for real-world service roles.

Career-Focused Plumbing Technician Training

We deliver skills focused plumbing technician training designed to build job readiness for aspiring Technicians. Our program emphasizes real plumbing repair procedures, proper tool handling, and strong system understanding, without requiring a traditional degree path.

Through hands-on practice in common service tasks like Changing a Shower Cartridge, we ensure we are fully prepared for everyday field work with confidence, accuracy, and job ready technical skills.

Career and Job Placement Support for Skilled Trades

We provide dedicated career services and job placement support to help learners transition from training to employment as a professional Plumbing Technician. We offer resume guidance, interview preparation, and direct employer connections so we can confidently apply our hands-on skills in real service roles, including tasks like Changing a Shower Cartridge.

This career focused support ensures we are job ready, aligned with workforce development needs, and prepared to succeed in plumbing technician roles across the renewable energy and skilled trades sectors.

Why ImmerseLearn's Plumbing Training Approach Stands Out

We focus on building industry-ready plumbing skills that help us confidently perform real service tasks like Changing a Shower Cartridge. Our training approach aligns with real-world Plumbing Technician job requirements while strengthening practical repair accuracy and job readiness.

• Immersive Virtual Reality–based hands-on training for mastering Changing a Shower Cartridge and core plumbing repair procedures

• Realistic plumbing repair simulations to improve tool handling, leak prevention, and shower cartridge replacement accuracy

• Short-term, skills-focused programs designed specifically to prepare future Plumbing Technicians for field service careers

• Real-world externship experience to build confidence in everyday field work and service workflow

• Career and job placement support with resume guidance, interview preparation, and employer connections


To learn more about how we build real-world repair skills, explore our Plumbing Training Program

Conclusion: Mastering Changing a Shower Cartridge

Changing a Shower Cartridge is a common yet precise plumbing repair that requires the right tools, correct sequence, and careful handling of components to restore smooth water flow and prevent leaks. When we follow proper plumbing repair procedures, we not only resolve performance issues but also ensure long-term system reliability and customer satisfaction.

With the help of immersive training methods and hands-on practice, we can build the confidence and technical accuracy needed for professional shower cartridge replacement in modern plumbing service work.

Are we ready to strengthen our skills in Changing a Shower Cartridge and handle real-world plumbing repairs with confidence?
