Diagnosing and Replacing Thermocouple





Content Type icon

CONTENT TYPE

VR, ILV, Interactive Modules

Duration icon

DURATION

2.5 Hours

Target Audience icon

TARGET AUDIENCE

Technician

Course Delivery icon

COURSE DELIVERY

VR and Web-based

Credits icon

Credits : 0.3

Icons depicting a structured learning cycle: Learn, Assess, Evaluate, Implement



About the Course:

This Diagnosing and Replacing Thermocouple microcredential trains HVAC technicians to safely diagnose, test, remove, and replace thermocouples in gas-fired heating systems. Learners gain hands-on practice identifying thermocouple failures through inspection and ignition testing, followed by correct removal and installation procedures. Enroll in our Advanced HVAC Skills Training Program to gain broader HVAC expertise and hands-on skills. The course emphasizes safety, accuracy, and proper verification to ensure reliable furnace operation and consistent pilot flame performance.

Learning Objectives:

  • Identify common signs of thermocouple failure, such as weak pilot flame, flame drop-out, or no ignition.

  • Safely shut down power and gas supply before inspection or replacement.
  • Test thermocouple operation through cleaning, reconnection, and ignition checks.
  • Remove faulty thermocouples using proper tools and procedures.
  • Install and secure a new thermocouple correctly to prevent leaks or ignition issues.
  • Verify proper system operation by confirming a stable pilot flame and furnace startup.

Course delivered via LMS and requires an Oculus VR headset for hands-on VR simulations.

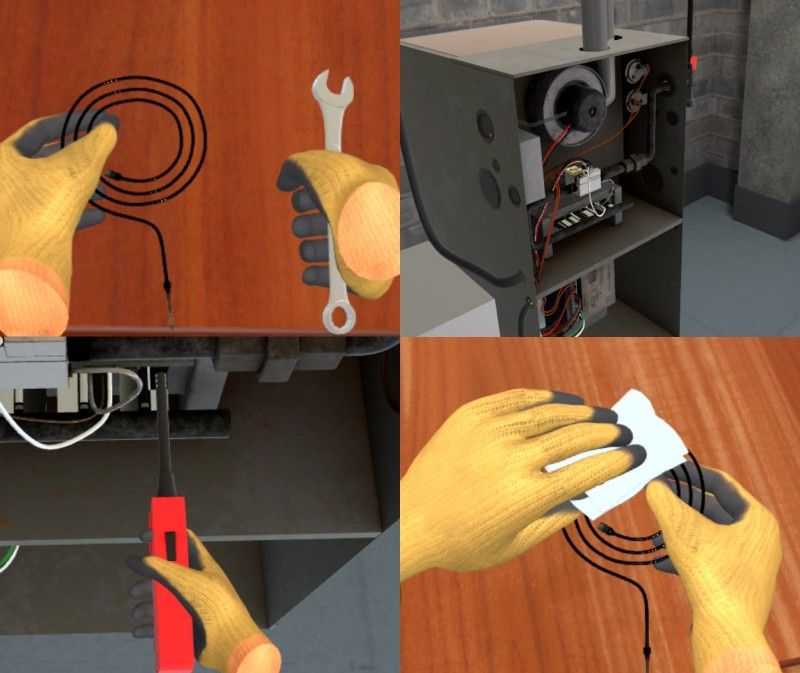

HVAC technician diagnosing and replacing thermocouples in gas heating systems



Workforce Development

Learn thermocouple replacement in HVAC systems for reliable gas furnace function

At ImmerseLearn, we prepare HVAC technicians to perform critical gas-system service tasks with confidence. This microcredential focuses on safe handling, diagnostic precision, and correct replacement techniques that mirror real-world service calls.

How this course strengthens workforce skills:

Thermocouple Diagnostics −
Learn how to inspect and test thermocouples by observing pilot flame behavior, cleaning carbon buildup, and performing ignition checks to accurately determine component failure.
Safe Shutdown and Removal Procedures +
Practice powering down the furnace, shutting off the gas supply, and setting the gas valve to OFF before disconnecting and removing the thermocouple using proper tools.
Cause Identification +
Identify common causes of thermocouple failure, including carbon buildup, improper positioning in the pilot flame, age-related wear, or overheating conditions.
Replacement and Verification +
Select and install a new thermocouple correctly, secure all connections, restore power and gas supply, and verify successful ignition with a clean, steady pilot flame.

By completing this microcredential, HVAC technicians will build the practical skills required to diagnose, replace, and verify thermocouples safely and effectively, ensuring dependable furnace operation and improved system reliability in real-world service environments. New to HVAC fundamentals? You may begin your learning journey with our HVAC course designed to build foundational skills and support career entry into the HVAC industry.
