Diagnosing and Replacing Transformers



Content Type icon

CONTENT TYPE

VR, ILV, Interactive Modules

Duration icon

DURATION

3 Hours

Target Audience icon

TARGET AUDIENCE

Technician

Course Delivery icon

COURSE DELIVERY

VR and Web-based

Credits icon

Credits : 0.3

Icons representing a four-step workflow: Learn, Assess, Evaluate, and Implement



About the Course:

This Diagnosing and Replacing Transformers microcredential trains HVAC technicians to diagnose, test, and replace control transformers used in heating, ventilation, and air conditioning systems. Through VR simulations and guided diagnostic scenarios, learners will identify transformer failures, perform voltage and continuity tests, and replace faulty components in compliance with electrical safety practices. The course emphasizes proper wiring, grounding, and load verification to ensure safe and efficient system operation.

Learning Objectives:

  • Identify the purpose and function of transformers in HVAC control circuits.

  • Diagnose transformer faults including open windings, shorted turns, and overload conditions.
  • Measure input and output voltages using a multimeter to confirm operation.
  • Follow lockout/tagout (LOTO) procedures before performing electrical service.
  • Safely remove and replace transformers with correct voltage and VA ratings.
  • Verify correct wiring polarity, grounding, and secure mounting during replacement.
  • Test system operation post-installation to confirm proper voltage and circuit functionality.

Course delivered via LMS and requires an Oculus VR headset for hands-on VR simulations.



HVAC transformer diagnostics, testing, and replacement for technicians



Workforce Development

HVAC transformer troubleshooting, wiring, grounding, and system verification

At ImmerseLearn, we prepare HVAC technicians to service electrical components with confidence and accuracy. This microcredential combines safety awareness, electrical diagnostics, and professional workmanship.

How this course strengthens workforce skills:

Transformer Diagnostics −

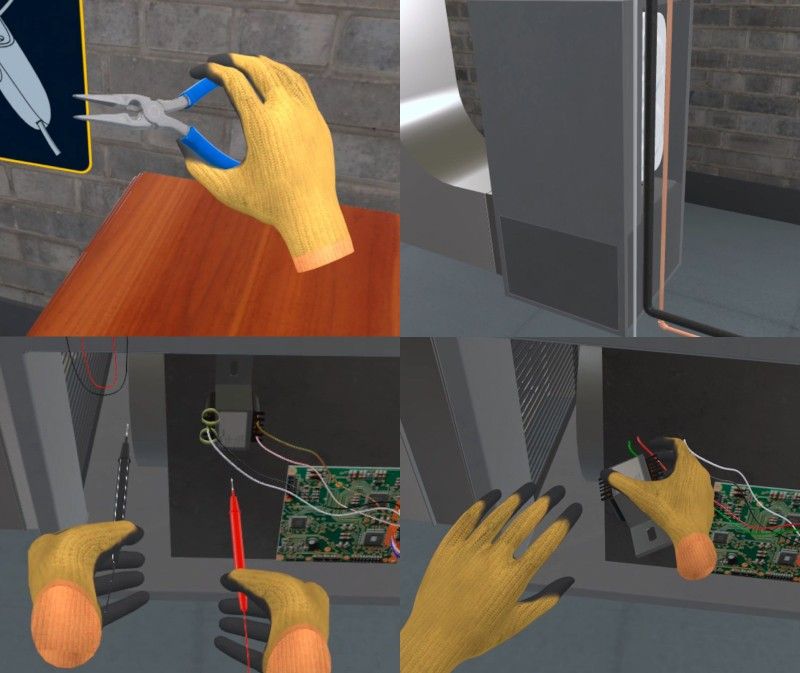

Perform hands-on troubleshooting in a virtual environment which includes testing primary and secondary voltages, identifying short circuits, and isolating faults in control circuits.
Safe Replacement Procedures +
Follow realistic VR sequences for disconnecting power, labeling wires, and replacing transformers with proper ratings and secure electrical connections.
Wiring and Grounding Practices +
Understand how to wire transformer terminals correctly, maintain polarity, and ensure proper grounding to prevent voltage drops or equipment damage.
System Verification and Testing +
Simulate post-replacement testing to confirm correct voltage output, restored control power, and safe circuit performance.

By completing this microcredential, HVAC technicians will gain the knowledge and hands-on skills to diagnose and replace transformers safely, efficiently, and according to professional electrical standards. Learn more and grow your expertise with our hvac tech training online.
