Diagnosing and Replacing Contactors Training



Content Type icon

CONTENT TYPE

VR, ILV, Interactive Modules

Duration icon

DURATION

1 Hours

Target Audience icon

TARGET AUDIENCE

Technician

Course Delivery icon

COURSE DELIVERY

VR or WEB Based

Credits icon

Credits : 0.1

Icons representing a four-step workflow: Learn, Assess, Evaluate, and Implement



About the Course:

This Diagnosing and Replacing Contactors microcredential trains HVAC technicians to safely diagnose, remove, and replace contactors in heating, ventilation, and air conditioning systems. Learners will practice identifying faulty contactors through visual inspection, electrical testing, and operational checks. The course also emphasizes correct replacement procedures, ensuring compatibility and reliable system performance.

Learning Objectives:

  • Identify common signs of contactor failure (pitting, welding, coil burnout).

  • Use multimeters and continuity tests to confirm contactor condition.
  • Follow safe lockout/tagout procedures before removal.
  • Select appropriate replacement contactors based on system specifications.
  • Install and test new contactors to verify proper system function.

This Diagnosing and Replacing Contactors training is delivered through our LMS and is available as both web-based and immersive VR training.

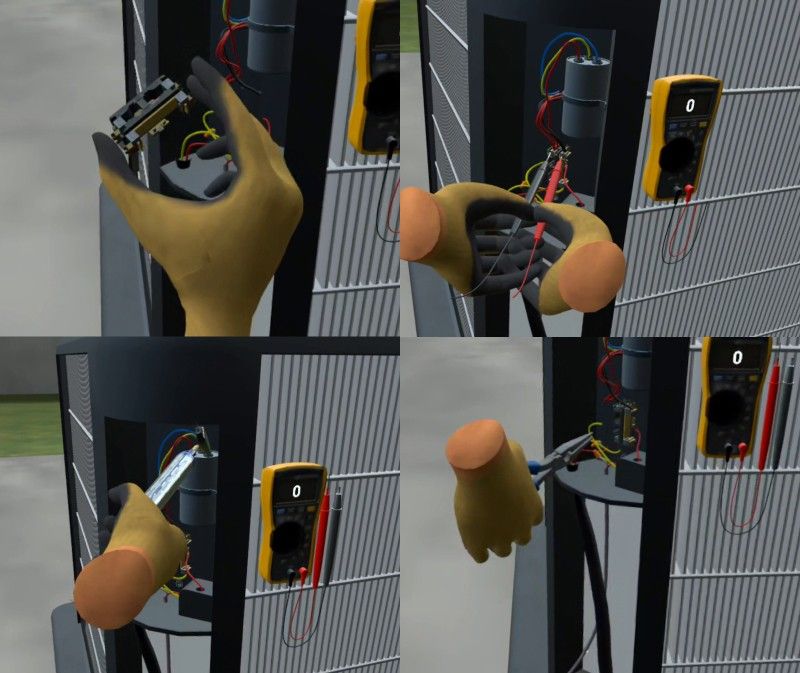

HVAC contactor diagnosis using a multimeter to test electrical continuity



Diagnosing and Replacing Contactors Training for HVAC Technicians

Technician inspecting an HVAC contactor for signs of wear and electrical failure

At ImmerseLearn, we prepare technicians to handle real-world electrical service tasks in HVAC systems. This microcredential emphasizes diagnostic accuracy, safe handling, and precise replacement.

How this course strengthens workforce skills:

Contactor Diagnostics −
Learn how to recognize electrical and mechanical wear issues through inspection and testing, reducing downtime caused by failed components.
Safe Removal Procedures +
Practice lockout/tagout steps and proper tool use for safe removal of faulty contactors.
Cause Identification +
Determine root causes of contactor failure, including overvoltage, overheating, or incorrect sizing.
Replacement and Verification +
Select correct contactors for system voltage and amperage, install them properly, and test circuits for restored operation.

By completing this microcredential, HVAC technicians will build the skills needed to troubleshoot, replace, and maintain contactors safely and effectively, ensuring system reliability.
