Megohmmeter Testing for Solar PV Installations



Content Type Icon

CONTENT TYPE

VR, ILV, Interactive Modules

Duration Icon

DURATION

3.5 Hours

Target Audience Icon

TARGET AUDIENCE

Technician

Course Delivery Icon

COURSE DELIVERY

VR and Web-based

IACET Credits Icon

Credits : - 0.4

Learn, assess, evaluate, and implement training process

About the Course:

This Megohmmeter Testing for Solar PV Installations microcredential trains technicians to safely perform insulation resistance testing on photovoltaic (PV) systems using a megohmmeter. Learners will develop the skills needed to verify insulation integrity, identify electrical faults, and ensure system safety and compliance before system energization.

Technicians will practice real-world procedures including megohmmeter setup, selecting appropriate test voltages, isolating circuits, testing PV strings and components, and interpreting insulation resistance readings. The course emphasizes safe testing practices, accurate diagnostics, and adherence to industry standards to prevent electrical failures and improve system reliability.

Learners will gain hands-on experience identifying insulation breakdowns, moisture-related issues, damaged cables, and grounding faults while ensuring PV systems operate safely and efficiently.

Learning Objectives:

  • Understand the purpose of insulation resistance testing in PV systems
  • Identify components and functions of a megohmmeter
  • Follow proper safety procedures before performing insulation testing
  • Set up and operate a megohmmeter correctly
  • Perform insulation resistance testing on PV strings, cables, and electrical components
  • Interpret megohmmeter readings and identify abnormal results
  • Detect insulation faults, moisture intrusion, and damaged wiring
  • Verify compliance with electrical safety and installation standards

Course delivered via LMS and requires an Oculus VR headset for hands-on VR simulations.

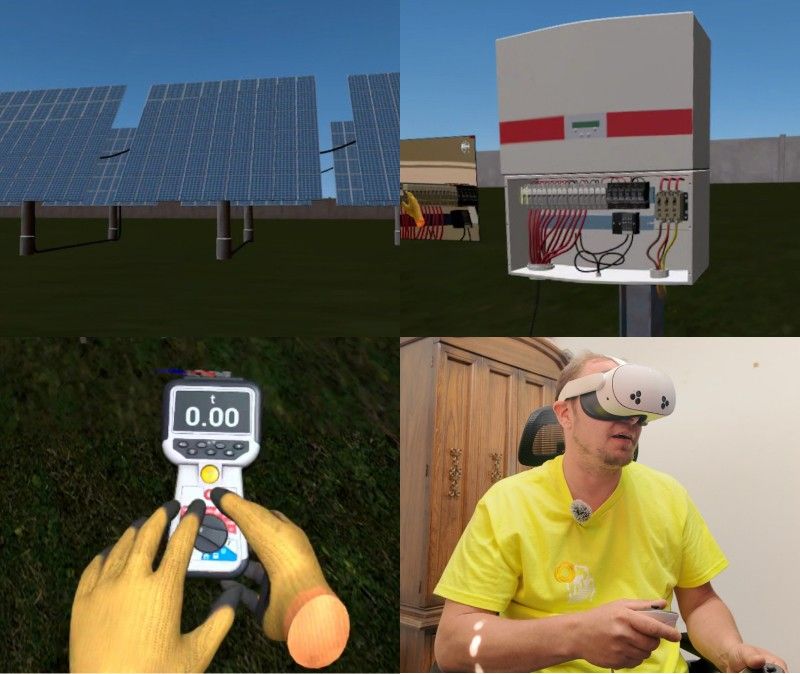

Image highlighting solar technician performing PV insulation resistance testing”



Workforce Development

Image showing solar PV electrical diagnostics and safety testing

At ImmerseLearn, we equip solar technicians with essential electrical diagnostic and verification skills required for safe and reliable PV installations. This microcredential strengthens troubleshooting accuracy, safety awareness, and compliance knowledge through immersive VR-based learning while supporting career advancement through our advanced photovoltaic installation training.

Insulation Resistance Testing Techniques −
Learn how to properly use a megohmmeter to test insulation resistance across PV system components. Technicians develop the ability to identify weak insulation, prevent electrical leakage, and ensure safe system operation.
Safe Electrical Testing Practices +
Practice critical safety procedures while performing megohmmeter testing, including circuit isolation, lockout/tagout procedures, PPE usage, and safe handling of energized equipment. Emphasis is placed on technician safety and preventing equipment damage.
Fault Detection and Diagnostic Skills +
Understand how to analyze insulation resistance readings and diagnose common PV electrical issues. Technicians will learn to identify cable damage, moisture intrusion, grounding faults, and deteriorated insulation conditions.
System Verification and Compliance +
Apply insulation resistance testing procedures to confirm installation quality and compliance with industry standards. Learners complete the process by validating electrical integrity and ensuring safe and dependable PV system performance.

By completing this microcredential, technicians will gain the confidence and technical expertise needed to safely use a megohmmeter, identify insulation issues, and support reliable, efficient, and compliant solar PV installations. Learners interested in broader solar installation concepts can also explore our solar PV fundamentals program.
