Elements of Electrical Component for PV Systems



Content Type Icon

CONTENT TYPE

VR, ILV, Interactive Modules

Duration Icon

DURATION

2.5 Hours

Target Audience Icon

TARGET AUDIENCE

Technician

Course Delivery Icon

COURSE DELIVERY

VR and Web-based

IACET Credits Icon

Credits : -

Learn, assess, evaluate, and implement training process



About the Course:

This microcredential introduces learners to the critical elements of electrical component installation in photovoltaic (PV) systems. Covering specifications, clearances, product use, and wire management best practices, the course prepares learners to meet real-world installation challenges with confidence and precision.

Through guided, interactive learning and immersive VR simulations, learners will explore installation standards, grounded and ungrounded system requirements, raceway support, and mitigation of galvanic corrosion—skills essential for safe and compliant PV system setup. To advance your skills further, explore our comprehensive PV Training Program designed for aspiring solar technicians.

Learning Objectives:

  • Interpret manufacturer specifications including torque values, NEMA ratings, and environmental limitations.
  • Identify and correctly apply common electrical fittings in PV systems, such as couplings, connectors, and grounding bushings.
  • Understand clearance requirements and proper placement for electrical components in residential and commercial PV installations.
  • Differentiate between grounded and ungrounded system needs and implement appropriate practices.
  • Apply best practices for wire management and documentation to ensure long-term system performance and safety.

Course delivered via LMS and requires an Oculus VR headset for hands-on VR simulations.

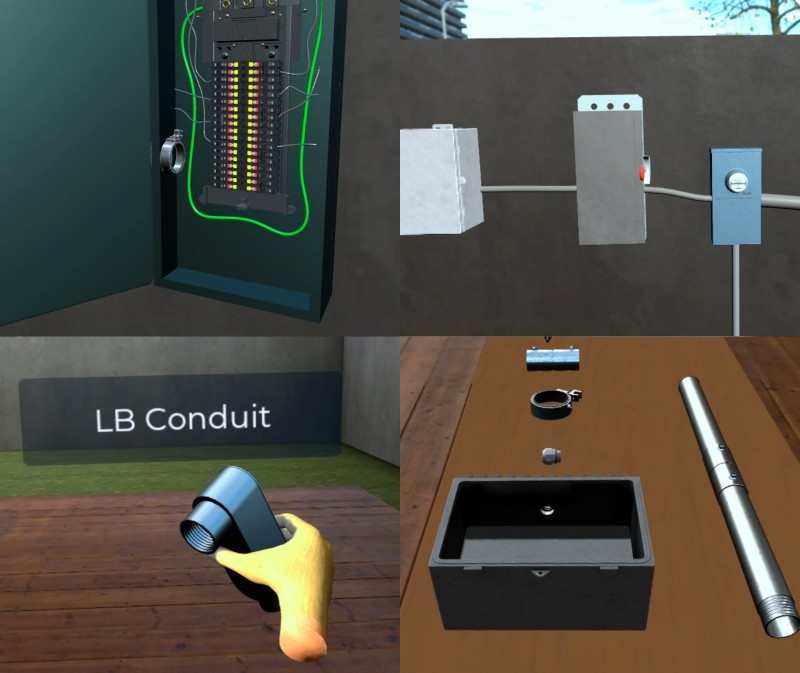

PV electrical components installation for safe and code compliant solar systems



Workforce Development

Solar technician training on PV electrical installation and code compliance

At ImmerseLearn, we believe that electrical literacy is foundational to quality PV system installation. This course empowers learners with the essential technical knowledge and field-ready skills to perform installations that are efficient, safe, and code-compliant.

Electrical Component Fundamentals −
Understand critical installation parameters from manufacturer manuals, including termination torque specifications, NEMA environmental ratings, and exposure considerations. Learn when and how to use antioxidants and recognize intended use distinctions (e.g., indoor vs. outdoor fittings).
Clearances and Code Compliance +
Master working clearance requirements, labeling durability, and appropriate mounting techniques. Understand how to meet labeling standards and ensure components are correctly marked for long-term visibility and reliability.
Common Fittings in Action +
Identify and apply essential electrical fittings—connectors, couplings, LBs, strain reliefs, and grounding bushings—based on system configuration and installation needs.
Grounded vs. Ungrounded Systems +
Learn how to distinguish and comply with grounding requirements for different system types, ensuring electrical safety and alignment with code standards.

By completing this microcredential, learners will build a solid foundation in PV electrical component installation, enabling them to perform with precision, meet safety standards, and contribute to the successful deployment of high-performance solar energy systems. To further enhance your expertise, explore our Photovoltaic (PV) Technician Course for comprehensive solar training.
